5000W Solar Off-grid AIO Inverter, 48Vdc to 120Vac, 5500W@500V PV Input, UL1741
5000W Off-Grid Inverter Charger for Split Phase Power Systems
| AC Input | |
| Rated Input Voltage: 110/120VAC | Input Voltage Range: 90V-140VAC |
| Frequency: 50Hz/60Hz(auto detect) | Overload/Short Circuit Protection: Circuit breaker |
| Efficiency: >95% | AC Reverse Protection: Available |
| Max Bypass Overload Current: 40A | |
| Inverter | |
| Output Voltage Waveform: Pure Sine Wave | Rated Output Power: 5000W |
| Rated Output Voltage: 120VAC | Peak Power: 10000W |
| Bypass Breaker: 63A | Rated Battery Input Voltage: 48V |
| Min Starting Voltage: 44V | Power Saving Mode: Load ≤25W |
| AC Charging | |

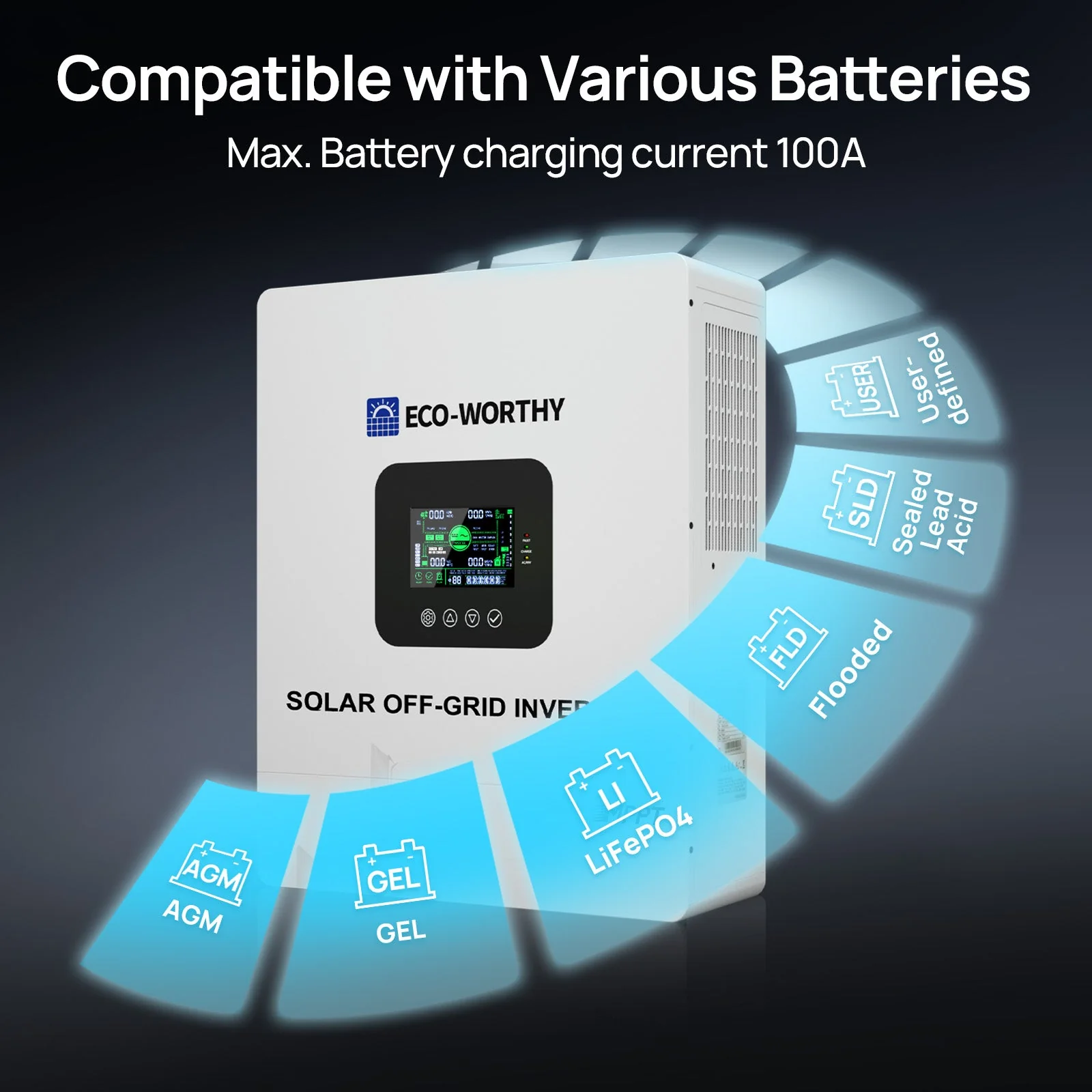

| Battery Type: Lead acid or lithium battery | Max Charge Current: 60A |
| Charge Voltage Range: 40-60VDC | Overcharge Protection: Alarm and turn off charging after 1 minute |
| PV Charging | |
| Max Input Power: 5500W | PV Charging Current Range：0-100A(can be set) |
| Max PV Open Circuit Voltage: 500VDC | PV Operating Voltage Range: 120-450VDC |
| MPPT Voltage Range: 120-450VDC | Battery Voltage Range: 40-60VDC |
| Charging Short Circuit Protection: Blown fuse |
$245.00
Original: $699.99
-65%5000W Solar Off-grid AIO Inverter, 48Vdc to 120Vac, 5500W@500V PV Input, UL1741—
$699.99
$245.00More Images
5000W Solar Off-grid AIO Inverter, 48Vdc to 120Vac, 5500W@500V PV Input, UL1741
5000W Off-Grid Inverter Charger for Split Phase Power Systems
| AC Input | |
| Rated Input Voltage: 110/120VAC | Input Voltage Range: 90V-140VAC |
| Frequency: 50Hz/60Hz(auto detect) | Overload/Short Circuit Protection: Circuit breaker |
| Efficiency: >95% | AC Reverse Protection: Available |
| Max Bypass Overload Current: 40A | |
| Inverter | |
| Output Voltage Waveform: Pure Sine Wave | Rated Output Power: 5000W |
| Rated Output Voltage: 120VAC | Peak Power: 10000W |
| Bypass Breaker: 63A | Rated Battery Input Voltage: 48V |
| Min Starting Voltage: 44V | Power Saving Mode: Load ≤25W |
| AC Charging | |
| Battery Type: Lead acid or lithium battery | Max Charge Current: 60A |
| Charge Voltage Range: 40-60VDC | Overcharge Protection: Alarm and turn off charging after 1 minute |
| PV Charging | |
| Max Input Power: 5500W | PV Charging Current Range：0-100A(can be set) |
| Max PV Open Circuit Voltage: 500VDC | PV Operating Voltage Range: 120-450VDC |
| MPPT Voltage Range: 120-450VDC | Battery Voltage Range: 40-60VDC |
| Charging Short Circuit Protection: Blown fuse |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
5000W Off-Grid Inverter Charger for Split Phase Power Systems
| AC Input | |
| Rated Input Voltage: 110/120VAC | Input Voltage Range: 90V-140VAC |
| Frequency: 50Hz/60Hz(auto detect) | Overload/Short Circuit Protection: Circuit breaker |
| Efficiency: >95% | AC Reverse Protection: Available |
| Max Bypass Overload Current: 40A | |
| Inverter | |
| Output Voltage Waveform: Pure Sine Wave | Rated Output Power: 5000W |
| Rated Output Voltage: 120VAC | Peak Power: 10000W |
| Bypass Breaker: 63A | Rated Battery Input Voltage: 48V |
| Min Starting Voltage: 44V | Power Saving Mode: Load ≤25W |
| AC Charging | |
| Battery Type: Lead acid or lithium battery | Max Charge Current: 60A |
| Charge Voltage Range: 40-60VDC | Overcharge Protection: Alarm and turn off charging after 1 minute |
| PV Charging | |
| Max Input Power: 5500W | PV Charging Current Range：0-100A(can be set) |
| Max PV Open Circuit Voltage: 500VDC | PV Operating Voltage Range: 120-450VDC |
| MPPT Voltage Range: 120-450VDC | Battery Voltage Range: 40-60VDC |
| Charging Short Circuit Protection: Blown fuse |
