ECO-WORTHY 30.72kWh Home Backup Power System

Package Includes:

10KW AIO Inverter | 30.72kWh Lithium Battery

6 x 48v 100ah Serve Rack Lithium Battery
1 x 10000W Off-grid Inverter
1xECO-WORTHY RACK6 V2 I 6-Layer Rack With 600A Busbar
2 Pairs Battery-to-Inverter Connection Cable
6 Pairs Battery Parallel Cables

51.2V 100AH SERVE RACK LITHIUM BATTERY

Battery Capacity: 100Ah	Battery Power: 5120Wh
Rated Voltage: 51.2V	Voltage Range: 40~58V
Maximum Charge/ Discharge Current: 100A	Charge Temperature Range: 0-55℃
Disharge Temperature Range:﹣20－55℃	Maximum Charge Voltage: 58.4V
Screw size: M8	Battery Size: 22.5517.135.63inch
Battery Weight: 103 lbs

10000W OFF-GRID INVERTER PARAMETER

Split Phase:	L1/L2/N/PE(L1/L2split)	Single Phase:
AC Output Phase	5.000W/5.000W	AC Output Phase	10000W
ACOutputRatedPhasePower	120Vac/120Vac	AC Output Rated Power	120Vac
AC Output RatedPhase woltage	41.7A/41.7A	AC Output Rated Voltage	83.3A
AC Output RatedPhaseCurrent	50Hz/60Hz	AC Output Rated Current A	50Hz/60Hz
AC OutputFrequency	L1/L2/N/PE(L1/L2 split)	AC Input Phase	L/N/PE(L1/L2parallel)
ACInput Phase	5.000W/5.000W	ACInputRatedPower	10000W
ACInputRatedPhasePower	120Vac/120Vac	ACInput RatedVoltage	120Vac
AC InputRatedPhaseVoltage	63A63A	AC Input Voltage Range	90-140Vac
ACInput MaxPhase Current	50Hzor60Hz	ACInput Max Current	126A
ACInputFrequency	90-140Vac/90-140Vac	AC Input Frequency	50Hz/60Hz
AC Input PhaseVoltage Range	120A	AC Input Voltage Range	90-140Vac
AC Charge To Battery Current	L/N/PE(L1/L2parallel)	AC Charge ToBatteryCurrent	120A
		Battery Input:BatteryVoltage	48Vdc(40V-60V)
		Max Battery discharge Current	220A
		Max Battery charge Current	200A
		PV Input
		Number Of PV Circuits	2
		PVinput Voltage Range	100Vdc-500Vdc
		MPPTinput Range	125Vdc-425Vdc
		MaxPVinput Current	22A+22A
		MaxPVinput Power	5500W+5500W
		MaxPV Charge ToBattery Current	200A
		IP Grade	IP20

Package Includes:

Each battery comes with 1 pair of parallel cables/1 x Screws Bag & Terminal Cover/1 x Grounding wire/1 x Battery-Battery communication Cable;The other package contains 1 10kW inverter, which also comes with its own wiring.Generally, there is no need to purchase additional cables.

Buy 6-pack get 6-Layer Rack With 600A Busbar.

Puerto Rico Sale

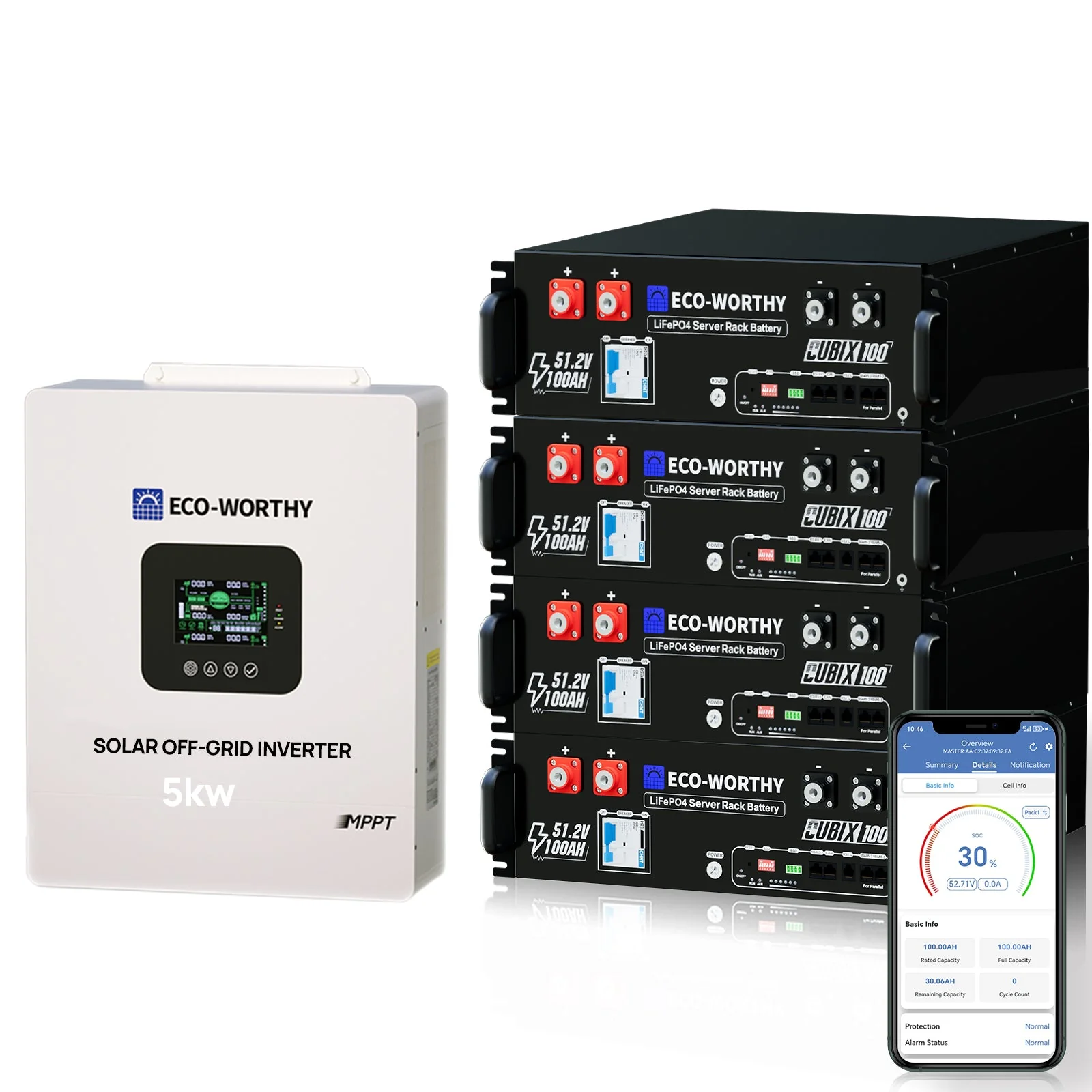

Off Grid Home Power Bundle | 5kW Inverter with 48V 100AH Server Rack Battery | 20.48kWh

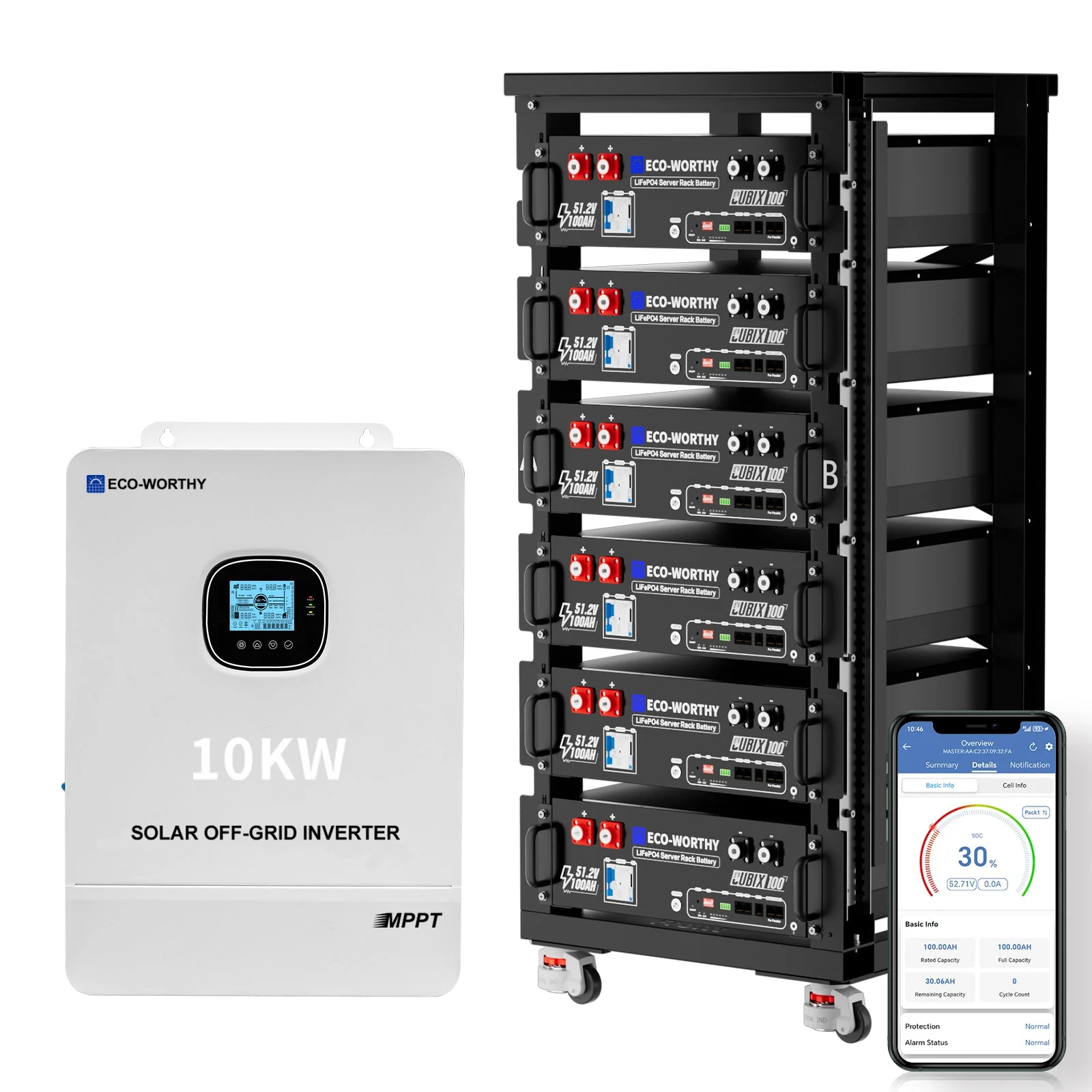

ECO-WORTHY 30.72kWh Home Backup Power with 48V LiFePO4 and 10kW Inverter

Eco-Worthy 48V 100Ah Server Rack Battery(6 Packs) | Bluetooth & WiFi | 10 Years Warranty | UL9540 | UL1973 | UL9540A | CEC Listed

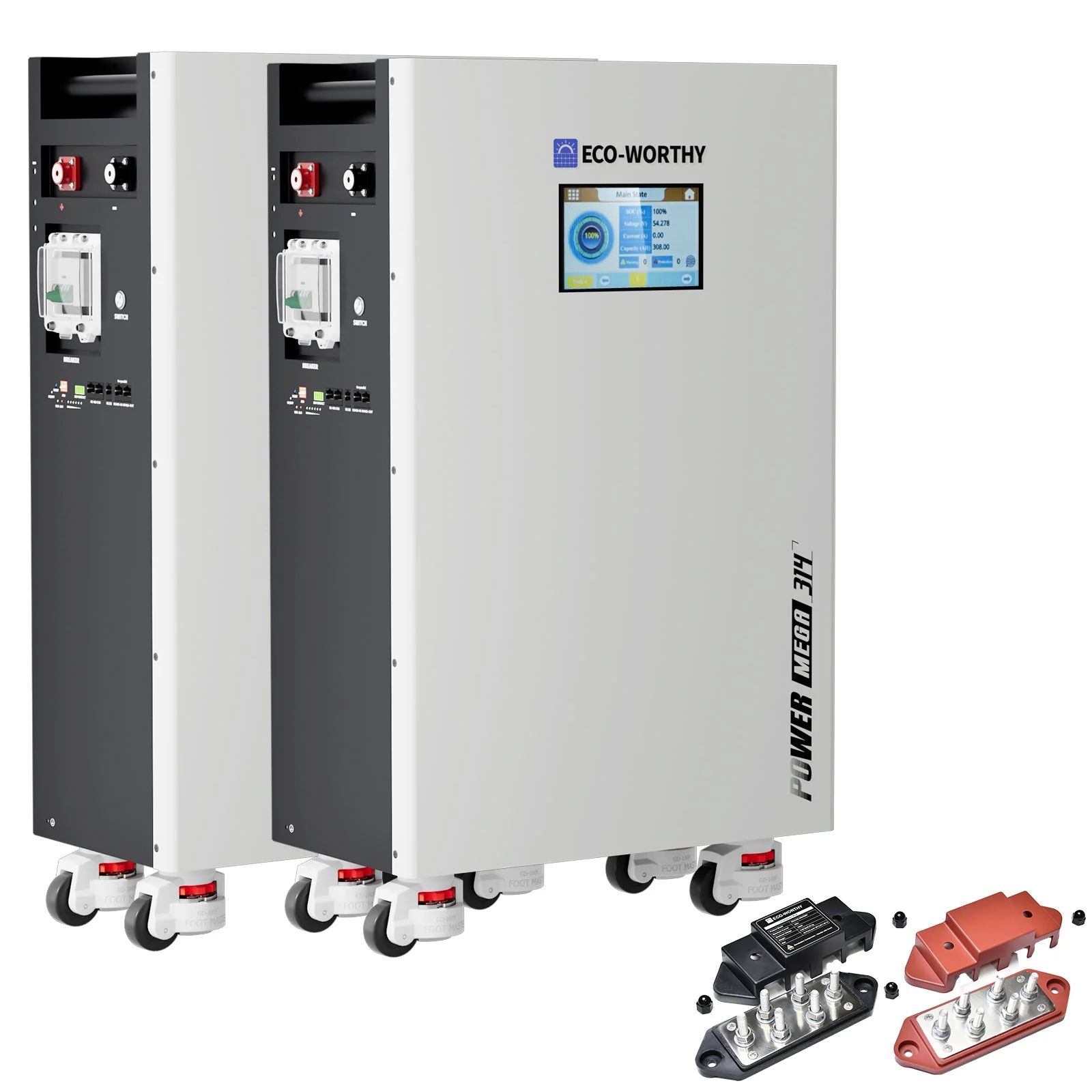

Eco-Worthy PowerMega 314 | 51.2V 314AH Lithium Battery 16kWh | Bluetooth & WiFi | Active Balance
